Best practices for Bluetooth Low Energy (BLE) advertising data

The TL;DR (Too Long; Didn't Read)

Learn how we at reelyActive structure BLE advertising packets based on best practices we've established.

Established how?
When we founded reelyActive in 2012, we recognised that BLE would become a de facto global standard for human-scale wireless data exchange, and have been consistently outspoken about best practices.
Why best practices?
BLE devices are all around us, representing people, products and places. Best practices foster spontaneous discovery and interpretation, and maximise interoperability.
Are these observed?
Not especially. As of 2024, we've seen few standard best practices emerge, hence our motivation to create this tutorial and The InteroperaBLE Identifier!

Best practices breakdown

This tutorial is organised into four parts as follows:

Part 1 of 4
Anatomy of a BLE advertising packet
Just enough structure with just enough space for data
Part 2 of 4
Mind the GAP as we GATT started
Strict specifications simplify interoperability
Part 3 of 4
Established protocols and standards
Open standards outside the Bluetooth specification
Part 4 of 4
The InteroperaBLE Identifier
Our best practice proposal for if-nothing-else-fits interoperability

Links to related tutorials are provided at the end.

Alternatives

Tutorials to consider instead

Anatomy of a BLE advertising packet   Part 1 of 4

Just enough structure with just enough space for a modest amount of data.

Advertising packet?
Here we'll examine only the advertising packets that BLE devices can spontaneously broadcast to any devices listening in range.
Why not other packets?
Paired (one-to-one) communication between Bluetooth devices is outside the scope of this tutorial, but the best practices for GATT nonetheless apply to both.

The advertising packet structure

The diagram below illustrates the structure of a BLE advertising packet with the Packet Data Unit (PDU) expanded and identifier content highlighted. The preamble, access address and CRC are typically generated/processed automatically, and are irrelevant to this discussion.

BLE Advertising Packet Structure

The mandatory Advertiser Address

Every BLE advertising packet includes a 48-bit Advertiser Address which uniquely identifies the device that is advertising data. See our best practices guide on identifiers to learn more about this, and other options for interoperable device identification:

The optional payload

A BLE advertising packet may include an optional payload of up to 31 bytes for additional data. The Bluetooth Generic Access Protocol (GAP), documented here, affords many payload options. Below are the most common for data.

Advertising data as Service Data

Bluetooth GAP and the advertising packet payload capacity allow for the inclusion of up to 20 bytes of data for a specific 16-bit service class UUID.

Common Data Type Name Max. Data
0x16 Service Data (16-bit UUID) 20 bytes
0x20 Service Data (32-bit UUID) 18 bytes
0x21 Service Data (128-bit UUID) 6 bytes
GATT Service/Characteristic Data

The Bluetooth SIG maintains assigned numbers for GATT Services and Characteristics. It is possible to include service/characteristic data provided it does not exceed the payload capacity. An example is battery, where a device advertises the percentage as a Battery Level characteristic (0x2A19).

Member Service Data

An entity may purchase a 16-bit member service from the Bluetooth SIG and define the service data structure as the wish, either as an open or closed standard. An example is Google Eddystone which has the reserved UUID 0xFEAA and supports several different frame types defined as open standards (). Eddystone-TLM, which includes battery voltage, temperature, tx count and uptime, is presented in detail in Part 3. Another example is Tile which has the reserved UUID 0xFEED but whose specification is proprietary and not published.

  Service data offers strictly interpreted representations of many common data types.

Advertising data as Manufacturer Data

Bluetooth GAP and the advertising packet payload capacity allow for the inclusion of up to 22 bytes of use-as-you-please data for manufacturers who register (at no cost) with the Bluetooth SIG and receive a 16-bit company identifier.

Common Data Type Name Max. Data
0xff Manufacturer Specific Data 22 bytes

For instance, Espruino device users may use the manufacturer's company identifier (0x0590) to send any data as a JSON string, for convenience. This is presented in detail in Part 3.

  Manufacturer data affords full freedom for the representation of data, constrained only by the payload capacity.

Advertising data as (other) Common Data

Bluetooth GAP specifies other common data types which may be relevant, a subset of which are listed below.

Common Data Type Name Max. Data
0x08 Shortened Local Name 22 bytes
0x09 Complete Local Name 22 bytes
0x19 Appearance 2 bytes
0x24 URI 22 bytes
0x31 Encrypted Advertising Data 22 bytes

For instance, a Local Name type could be used to represent the name of the device (or an associated person, product or place) as a short string of characters.

Mind the GAP as we GATT started   Part 2 of 4

Observe the Bluetooth Specification whenever possible to maximise interoperability.

What's GAP?
The Generic Access Protocol (GAP) defines the basic requirements of a Bluetooth device, including behaviours and methods.
What's GATT?
The Generic ATTribute Profile (GATT) establishes common operations and a framework for data transportation and storage.

Data-as-a-Service

How to use GATT services and characteristics in an advertising packet.

The following table was compiled using the Assigned Numbers Document and the GATT Specification Supplement.

UUID Name PDU Bytes Data Type
0x2A19 Battery Level 04 16 19 2a XX uint8 (1% resolution)
0x2A6C Elevation 06 16 6c 2a XX XX XX sint24 (0.01m resolution)
0x2A6D Pressure 07 16 6d 2a XX XX XX XX uint32 (0.1Pa resolution)
0x2A6E Temperature 05 16 6e 2a XX XX sint16 (0.01°C resolution)
0x2A6F Humidity 05 16 6f 2a XX XX uint16 (0.01% resolution)
0x2AA1 Magnetic Flux Density 3D 09 16 a1 2a XX XX YY YY ZZ ZZ 3 x sint16 (10-7T resolution)
0x2AA2 Language ** 16 a2 2a XX .. XX utf8s (variable-length)
0x2AF9 Generic Level 05 16 f9 2a XX XX uint16 (unitless)
0x2AFB Illuminance 06 16 fb 2a XX XX XX uint24 (0.01lux resolution)
0x2B8C CO2 Concentration 05 16 8c 2b XX XX uint16 (ppm resolution)

Many GATT characteristics and services are processed by our /advlib-ble-services open source library module which is included in our Pareto Anywhere open source IoT middleware.

The following section presents how open standards outside the Bluetooth Specification can be used in the absence of an appropriate Service/Characteristic to represent the data.

Established protocols and standards   Part 3 of 4

Reinforce existing open standards before creating yet another standard.

Whose standards?
Some companies offer their member service and/or company code as an open standard for others to use.
Can I do that too?
Yes, you can register with the Bluetooth SIG for a company code (free) or 16-bit Member Service UUID (paid) and publish your own open standard, or keep it private.

Member Services (16-bit UUID)

Member services that are offered as open specifications for general use include BTHome and Eddystone.

BTHome (0xFCD2)

" BTHome is an open standard for broadcasting sensor data and button presses over Bluetooth LE"

The BTHome v2 format specifies an efficient means of encapsulating a variety of measurements (and other data types) in a single advertising packet.*

* The data is interpreted by BTHome BLE and the advlib-ble-services module of Pareto Anywhere.

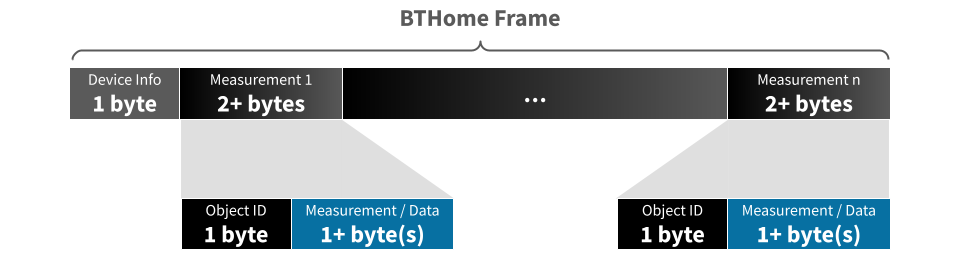

The BTHome v2 frame is illustrated below. It consists of a Device Info byte followed by one or more measurements. Each measurement begins with an Object ID byte which implicitly defines the type/length of the subsequent data bytes.

BTHome BLE advertising frame

The table below lists a subset of the supported measurement types and their corresponding interpretation. For the complete, latest specification visit bthome.io/format.

* as interpreted by Pareto Anywhere
1 0x00 = false | 0x01 = true
2 numerical values use little endian byte ordering
Name Measurement Bytes Data Type Interpretation*
count 09 XX uint8 count = 0xXX
gas 1c BB1 uint8 isGasDetected = [ true/false ]
count 3d YY XX2 uint16 count = 0xXXYY
duration 42 ZZ YY XX2 uint24 duration = 0xXXYYZZ
text 53 LL XX YY ZZ ... utf-8 text = "xyz..."
raw 54 LL XX YY ZZ ... — raw = "XXYYZZ..."

  BTHome is the ideal choice, provided it supports all the required data types.

Eddystone-TLM (0xFEAA)

" Eddystone is a protocol specification that defines a BLE message format for proximity beacon messages."

The Eddystone-TLM frame includes the following telemetry (TLM) measurements:

  • batteryVoltage
  • temperature
  • txCount
  • uptime

The telemetry data can be encrypted, when interwoven with Eddystone-TLM frames.

Eddystone-TLM BLE advertising frame

  Eddystone-TLM is arguably the most commonly supported telemetry format.

Manufacturer Specific Data (Company Code)

Manufacturer-specific data offered as open specifications for general use include Espruino and DirAct.

Espruino (0x0590)

"Send up to 24 bytes of JSON on Espruino's manufacturer ID."

See the NRF.setAdvertising() documentation for details on advertising JSON data.*

* The data is interpreted as JSON by EspruinoHub and the advlib-ble-manufacturers module of Pareto Anywhere.

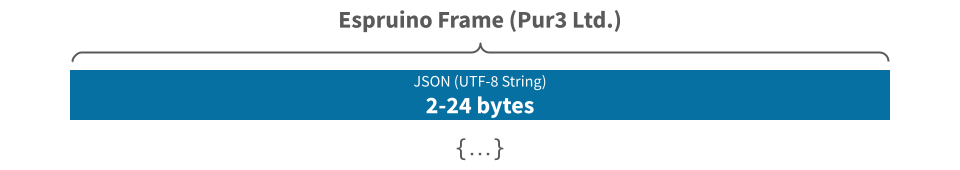

Espruino BLE advertising frame

  Espruino JSON payloads are ideal for dev/test when using official Espruino devices.

DirAct (0x0583)

" DirAct is open source embedded software for real-time proximity interaction detection."

The DirAct specification details how to populate an advertising packet* with the deviceId and rssi of up to three nearby peer devices, using InteroperaBLE Identifiers (see Part 4 below), as well as:

  • batteryPercentage
  • acceleration

Open source code is provided for Espruino devices: /reelyactive/diract

* The data is interpreted by the advlib-ble-manufacturers module of Pareto Anywhere.

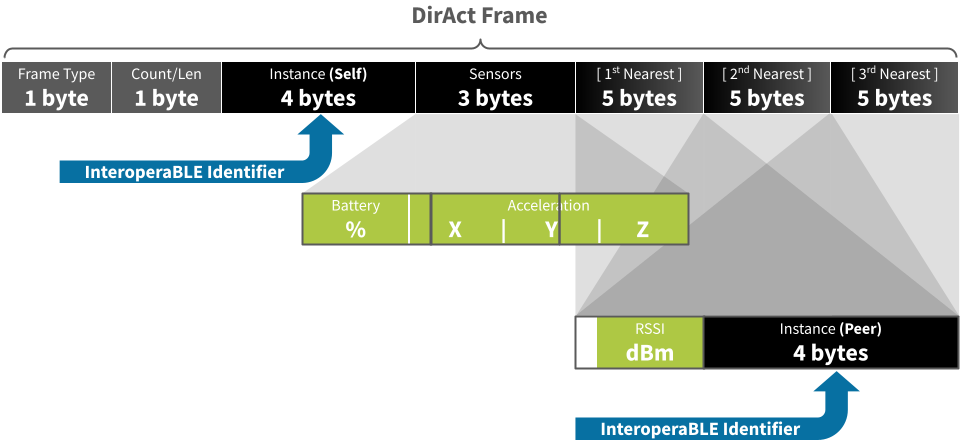

DirAct BLE advertising frame

  DirAct is ideal for non-commercial proximity identification applications.

The following section presents the InteroperaBLE Identifier as an if-nothing-else-fits option for representing data in a BLE advertising packet.

The InteroperaBLE Identifier   Part 4 of 4

Leverage existing standards to represent data in an interoperable way.

What's the purpose?
To provide a means of identification that can be interpreted by all platforms and readily translated into a URL for potential association with a digital twin.
What kind of data?
The InteroperaBLE Identifier is well suited to boolean data (true/false), Unicode characters (ex: emoji) and anything that completes a URI/URL.

The InteroperaBLE Identifier for Data

See our Best Practices for BLE Identifiers tutorial for an introduction to the InteroperaBLE Identifier with regards to its primary purpose: identification.

In addition to interoperable identification, the InteroperaBLE Identifier can also encapsulate data in its Entity UUID and Instance ID, which is presented next.

Moreover, all defined InteroperaBLE Identifiers are interpreted by our /advlib-interoperable open source interpreter module which is included in our Pareto Anywhere open source IoT middleware.

Implementation

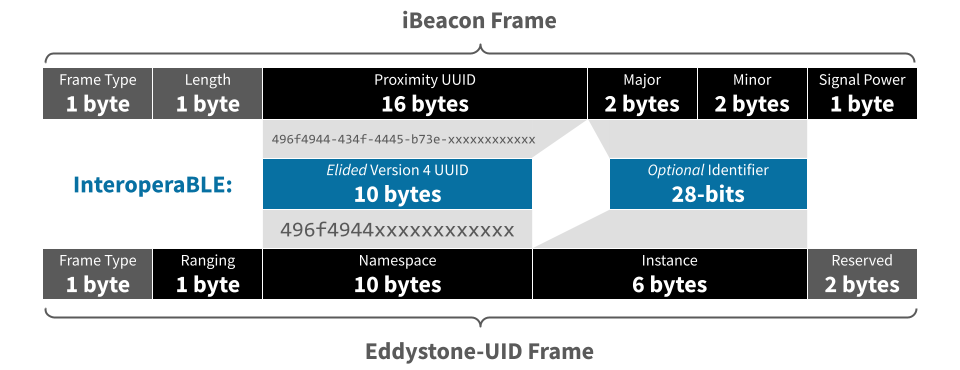

The InteroperaBLE Identifier can be implemented in a standard iBeacon or Eddystone-UID frame, as illustrated below.

InteroperaBLE data BLE advertising frames

In the case of encapsulated data, the Elided UUID identifies the data type, as listed in the table below, with the identifier interpreted as data in certain cases.

* as interpreted by Pareto Anywhere
Elided UUID Name Identifier Interpretation*
496f49445554462d3332 Unicode Code Point UTF-32 ex: 0x001f989 = 🦉
496f49444d6f74696f63 Motion User-defined isMotionDetected = [ true ]
496f4944427574746f6e Button User-defined isButtonPressed = [ true ]
